Rectangular Rapid Flashing Beacon Systems
Overview
In high-traffic areas, ensuring pedestrian safety is a top priority. When traditional crosswalk markings and static signs fail to capture motorists' attention, additional safety measures become essential. LightGuard Systems’ RRFB Pedestrian Crosswalk System provides a proven, high-visibility solution to enhance pedestrian protection. Engineered to alert drivers in real-time to pedestrians at crosswalks, our MUTCD-compliant RRFBs significantly improve safety by increasing driver awareness and compliance. Studies by the FHWA show that RRFBs can reduce pedestrian crashes by up to 47% and increase driver yield rates to as high as 98%.
Ideal Applications:
- Mid-block crossings
- School zone crossings
- Multi-lane uncontrolled crossings
Pedestrians activate the RRFB system using an ADA compliant push-button device and/or passively with the LightGuard Systems automatic detection bollard sensors. The RRFB is a stand-alone pedestrian warning system that is commonly paired with static or
flashing LED warning signs
(AC only). Our AC RRFB is also compatible with our
in-roadway warning lights (IRWL). When paired with IRWL, it increases visibility and motorist yielding.
With LightGuard Systems’ innovative approach to pedestrian safety, communities can create safer crosswalks and reduce the risk of accidents.
LIGHTGUARD's RRFB Options Include:
Power: Solar, Solar Wireless, or AC powered
Activation: Campbell APS, bulldog push button, bollard sensors, motions sensors, and touchless button station
Configuration: Single, angled, and back-to-back
LED Placement: Front, back, and pedestrian side indicator LEDs
Operation: Wireless control with simple electrical connections; remote option available
Wireless Synchronization: Up to 4 stations simultaneously
Controller Features: Collects directional statistics, detects peak hours, and tracks weekly & monthly usage patterns
Enclosure: Separate controller enclosure available in AC only
Other Peripherals: Beacons, flashing signs, and overhead lights
Housing Color: Black or yellow
Maintenance: Low-maintenance and easy to install
Not Included: Poles and mounting hardware
Proven to increase driver
yield rates by as much as 98%*
_
*An Evaluation of Rectangular Rapid-Flash LED Beacons for Enhancing
Pedestrian Yield Rates at Multilane Crosswalks in St. Petersburg, FL
LGS-RRFB Solar Wireless AIO (All-In-One) System
LIGHTGUARD’s MUTCD compliant Solar Wireless AOI RRFB system is a budget-friendly, easy-to-install solution to improve driver yield rates at uncontrolled crossings at mid-block crosswalks, trail crossings, and school zones. Pedestrian push buttons activate an irregular flash pattern (WW+S) that alerts motorists to pedestrians inside, or about to cross a crosswalk. The LGS-RRFB AIO product line is powered by a solar wireless unit controller and used with FYG pedestrian, school, trail crossing, or other custom warning sign.
Learn More
Go to product specsApplication Notes:
The solar-powered wireless RRFB supports a minimum of 180 daily activations, with the option to reach an average of 350 activations when upgraded with additional power and sufficient solar exposure. It contains front and side pedestrian LEDs and requires adequate solar exposure for optimal performance.
Key Features:
- Easy Activation & High Visibility – Pedestrians activate the RRFB using an ADA-compliant push button.

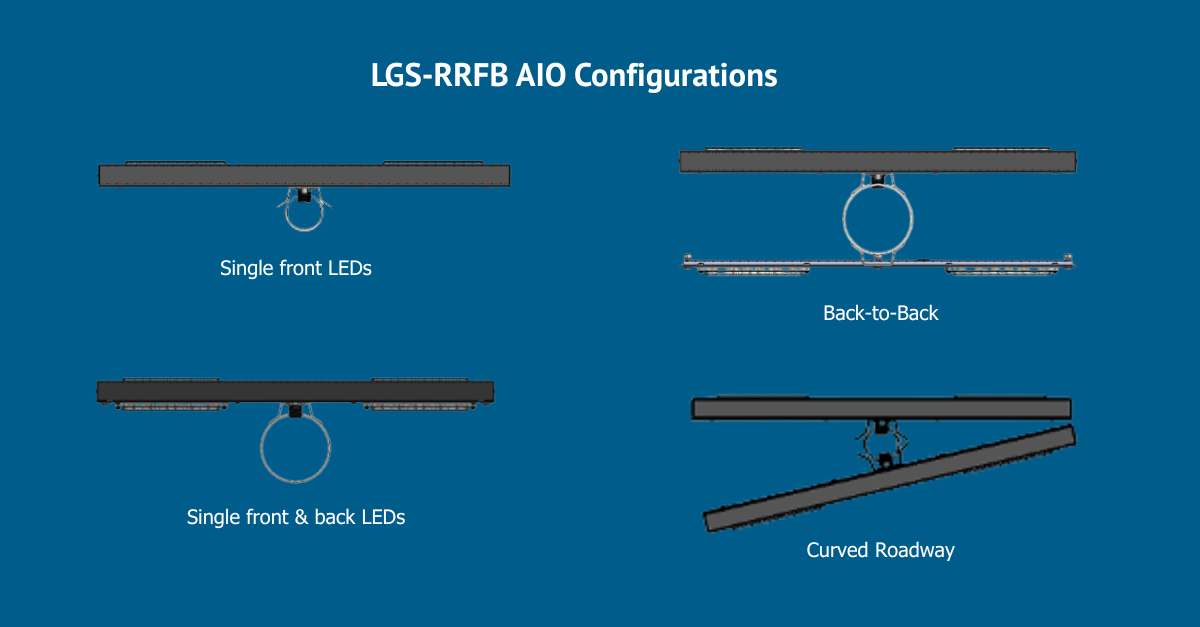

- Multiple Configurations – Select from 4 configurations
- All-in-One Design: Timer and radios are housed inside the RRFB for a streamlined look.
- Enhanced Safety Signage – Works alongside static pedestrian warning signs for increased visibility.
- Power & Connectivity Options – Upgradeable battery and solar panel options available.
- Multi-System Operation – Option to supports synchronization of up to three RRFB systems.
Typical System Components:
- 2 Back-to-Back RRFB enclosures (for a total of 4 RRFB)
- 2 Wireless transceivers

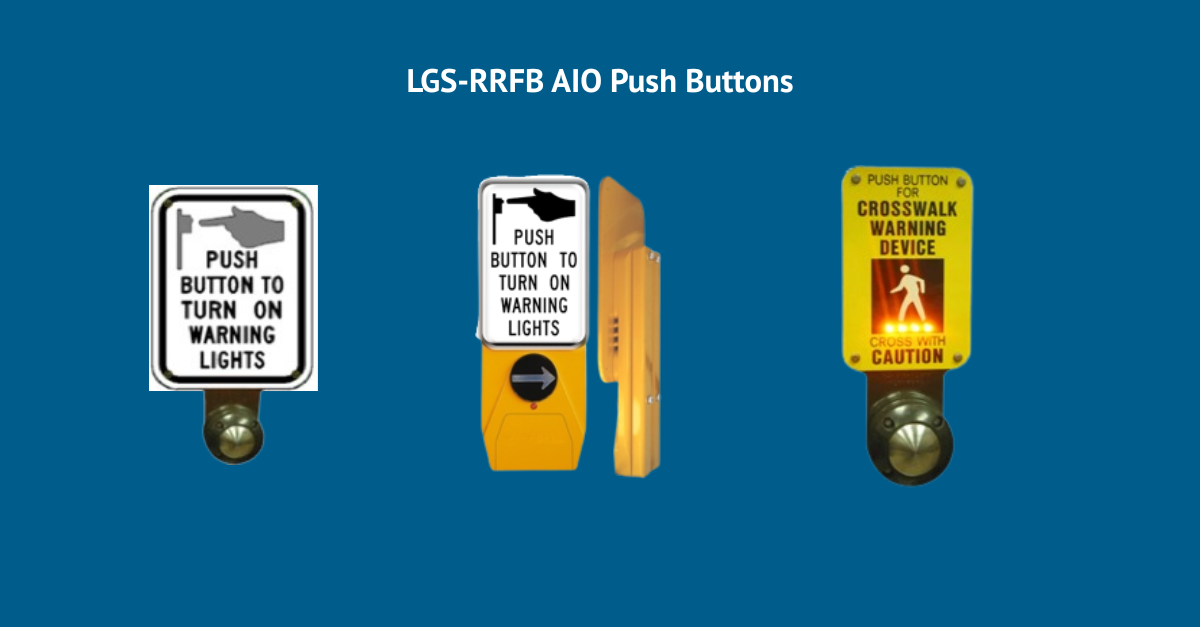

- 2 Push-button stations

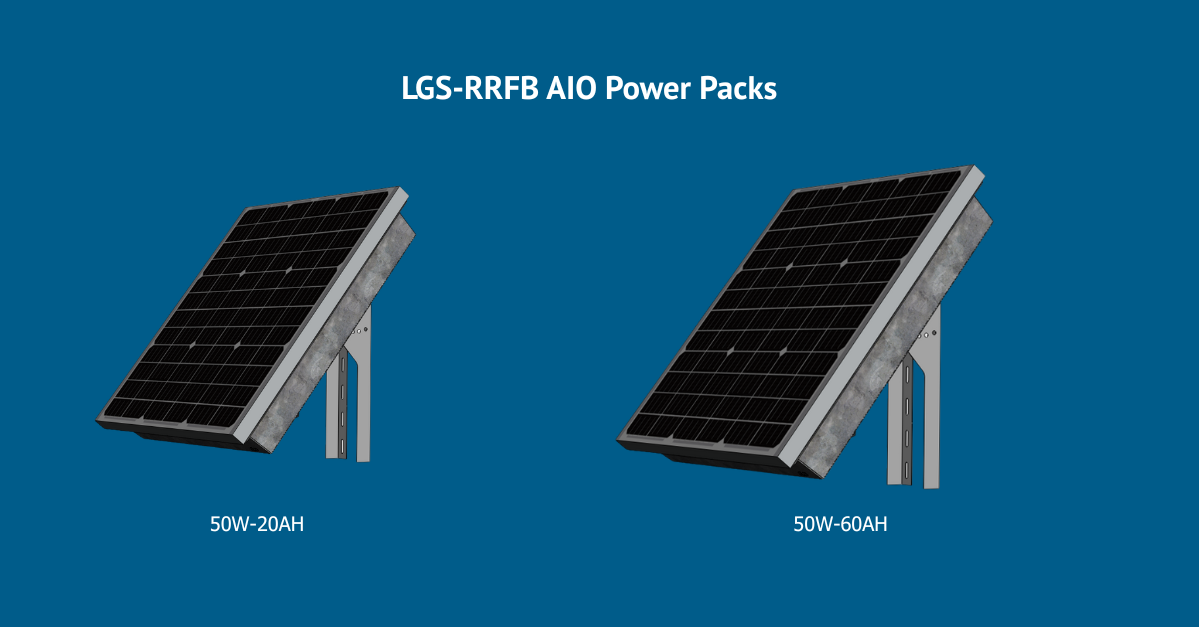

- 2 Solar power packs with solar panel, batteries, charge controllers, key lock switch, power status indicators, and electrical connector.

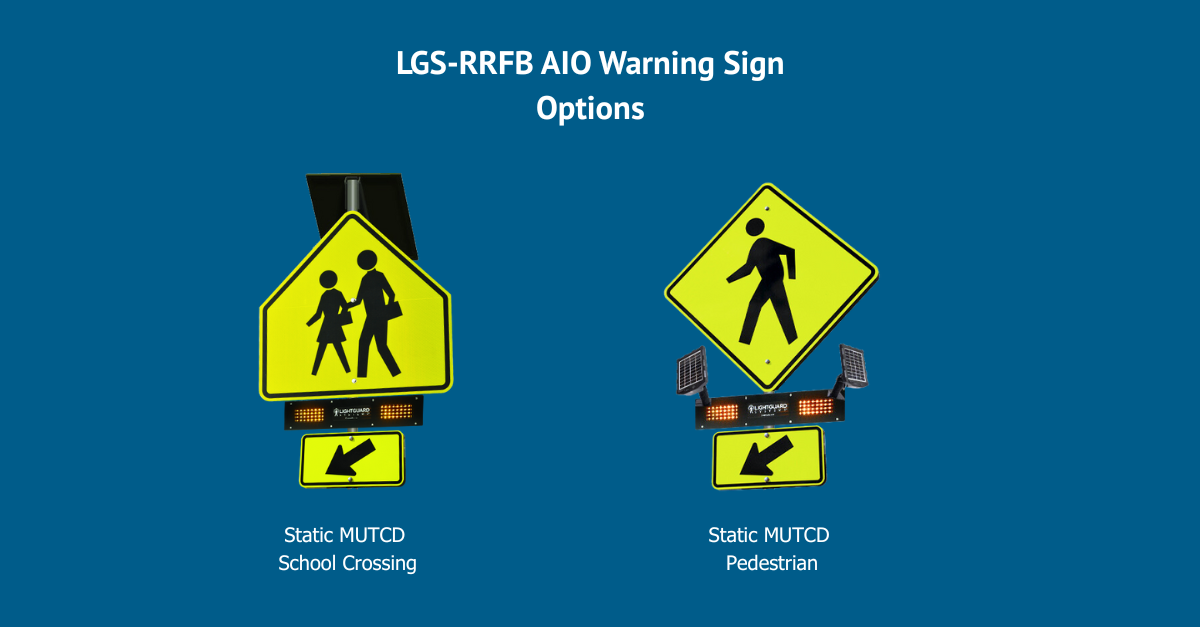

- 2 Static warning signs (30” diamond FYG pedestrian warning signs (W11-2) or Schoolhouse Crossing signs (S1-1), or custom sign.
- 2 Down arrow signs (12” x 24” W16-7P)
- Not Included: Poles and mounting hardware
This furnish-only system ensures reliable pedestrian safety enhancements where solar exposure is sufficient.
The AIO system can be upgraded for data logging, remote access, and phone programmability as optional add-ons.

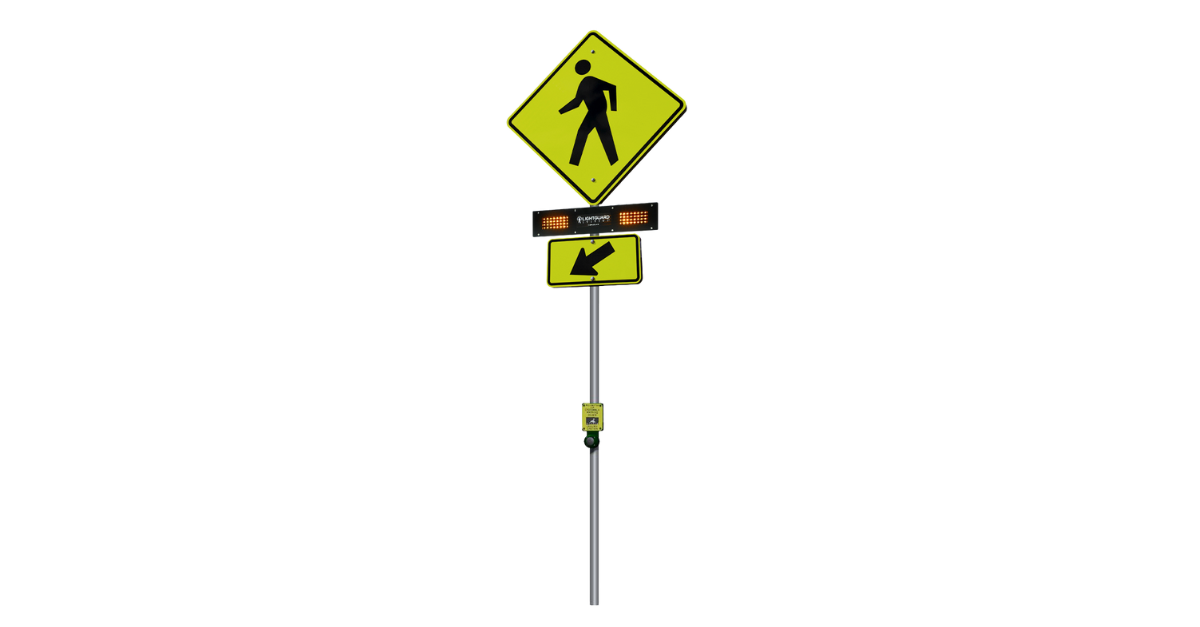

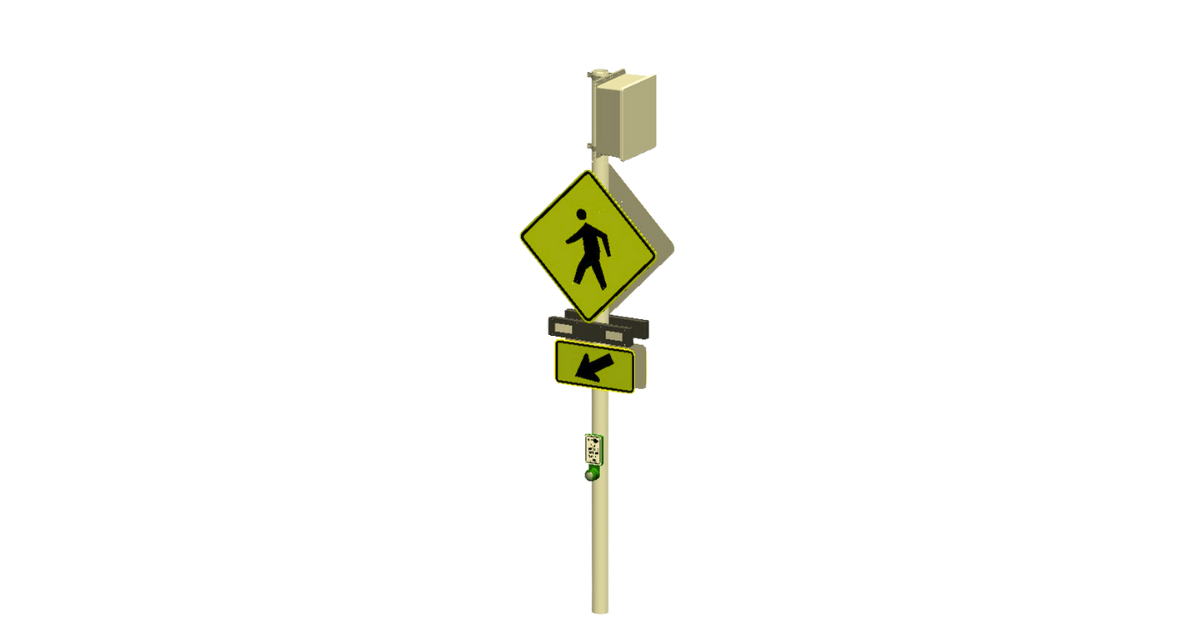

LGS-UC-AC Hardwired RRFB System
Our AC Hardwired RRFB System offers maximum power and flexibility with multiple inputs and outputs, multi-system operation, and the ability to collect directional statistics, detects peak hours, and track weekly and monthly usage patterns. Activation method options are push buttons, bollard sensors, RADs, motion detection, or wireless remote key FOB. Once activated, an irregular flash pattern (WW+S) alerts motorists to pedestrians inside, or about to cross a crosswalk. Our AC RRFB is powered by our Universal AC controller and commonly paired with LED flashing or static MUTCD pedestrian, school, trail crossing, or other MUTCD or other custom warning sign.
Learn More
Go to product spec sheetsApplication Notes:
The AC hardwired RRFB with LGS-UC-AC offers reliable pedestrian warning with maximum flexibility to meet most any needs, including 4 solid state outputs to support multiple configurations, plus 6 solid state inputs.
Key System Features:

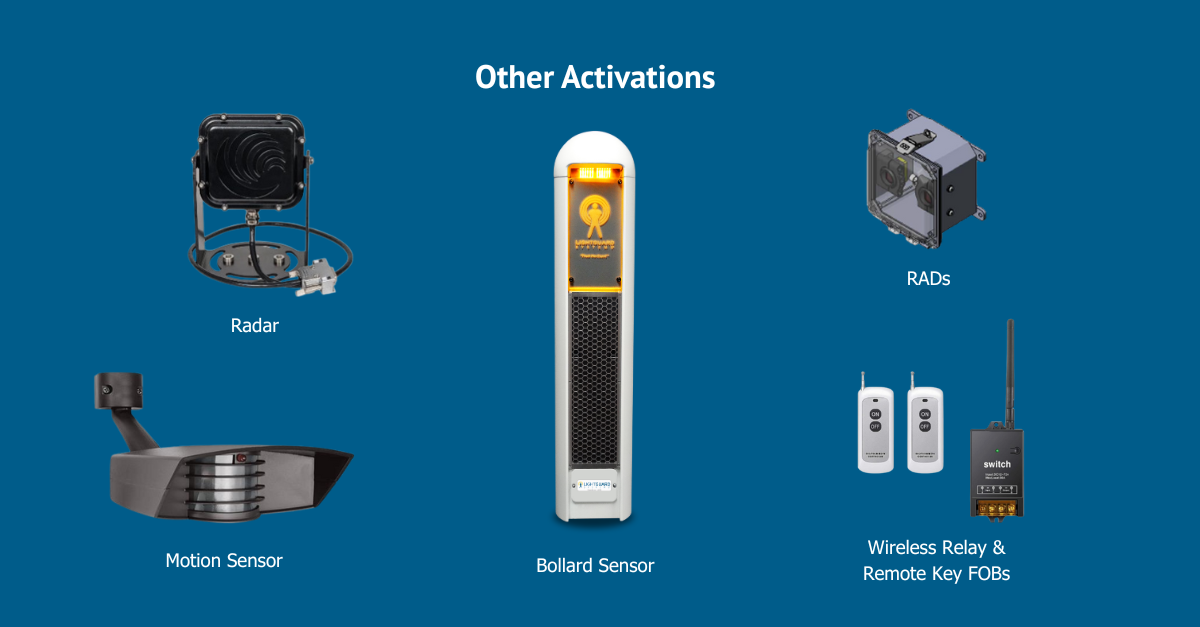

Easy Activation & High Visibility – Pedestrians activate the RRFB manually using an ADA-compliant push button or automatically via bollard sensors or RADs. Motion sensors and radar are also available.
Configurations – Single with front and side LEDs, or back-to-back for a total of 4.
Enhanced Safety Signage – Works alongside static and flashing LED pedestrian warning signs for increased visibility.
Reporting – data logging, remote access, and phone programmability
Multi-System Operation – Capable of supporting synchronization of up to three RRFB systems.

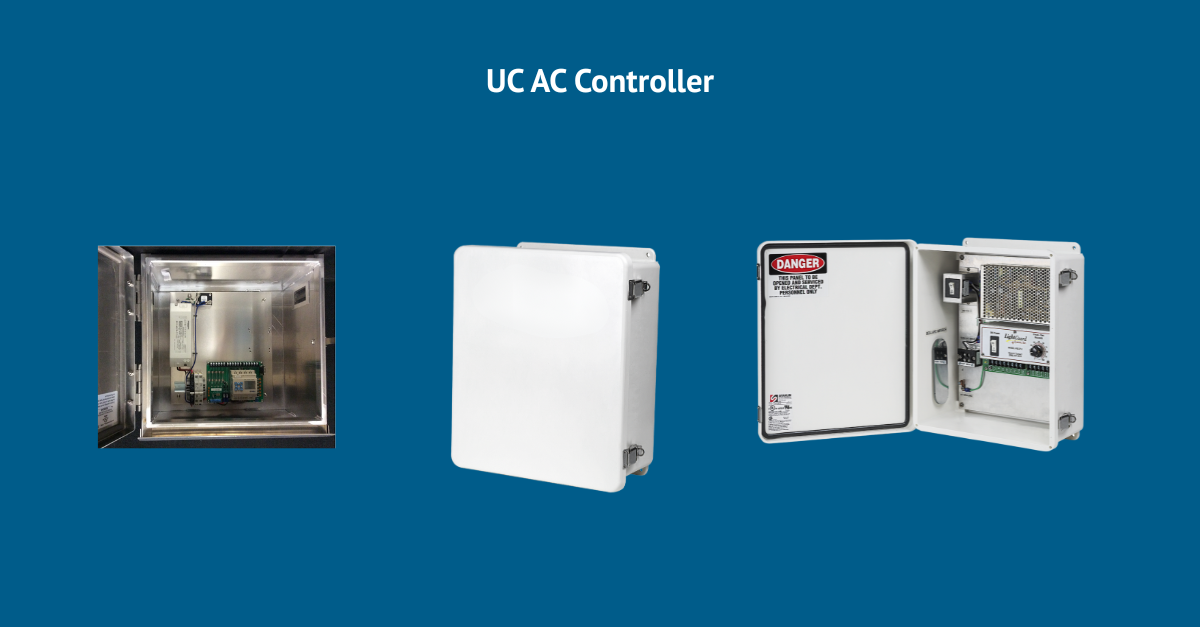

Controller Features:
- The programmable logic controller user interface consists of keypad + LCD.
- Lockable NEMA 3R aluminum cabinet with welded flange brackets.
- Lightning surge protection
- Internal & external branch circuit protection
- 120 VAC single phase supply
- Nominal 12 VDC output
- 4 solid state outputs support multiple configurations; 6 solid state inputs
Typical System Components:
- 2 Back-to-Back RRFB enclosures (for a total of 4 RRFB)
- 1 LGS-UC-AC Controller

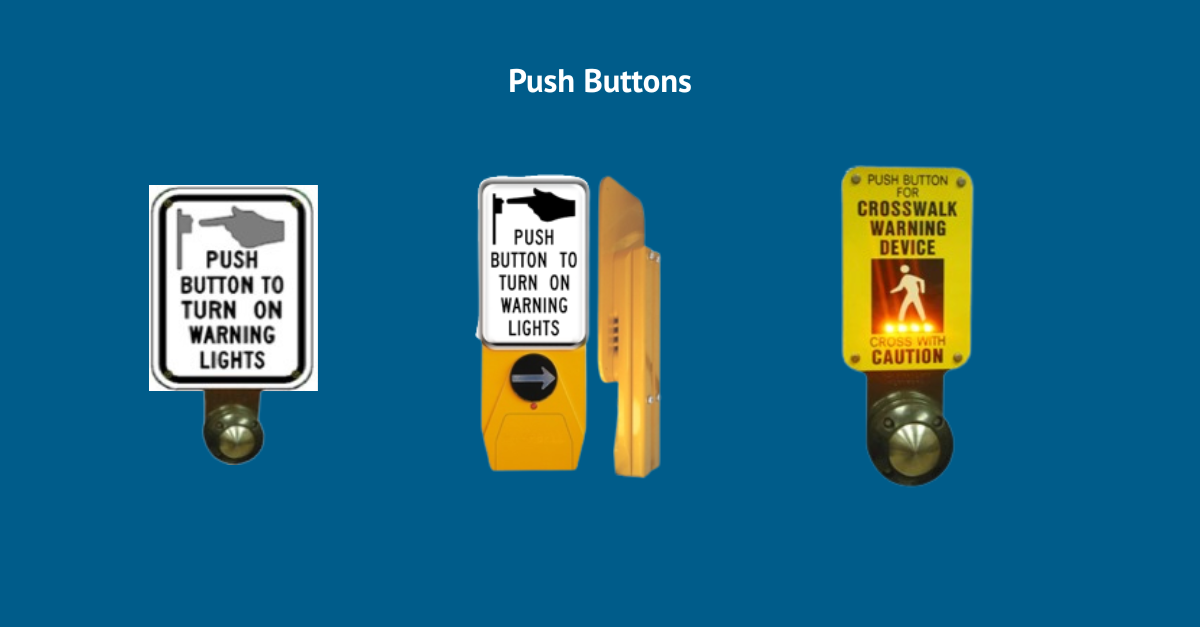

- 2 Push-button stations

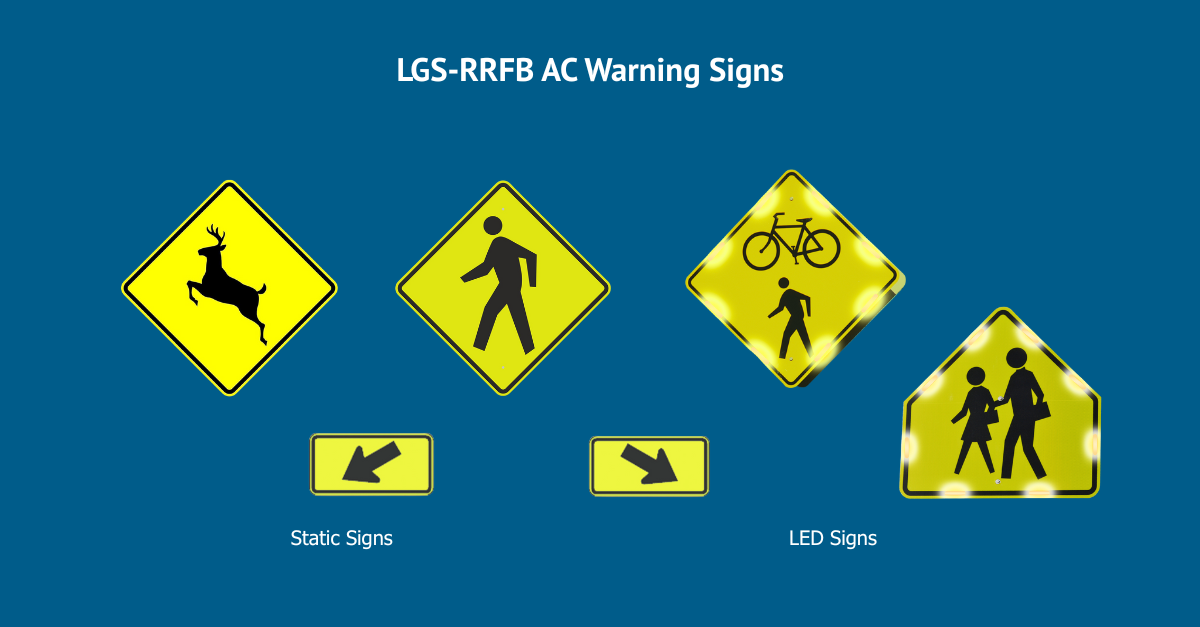

- 2 back-to-back (for a total of 4) static or flashing LED warning signs (30” diamond FYG pedestrian warning signs (W11-2) or Schoolhouse Crossing signs (S1-1), or custom sign.
- 2 Down arrow signs (12” x 24” W16-7P)
- 1 NEMA 3R, vented, aluminum enclosure w/padlock latch (option for custom paint)
- Not Included: Poles and mounting hardware
Call LightGuard Systems for Assistance at (707) 542-4547 or Contact Us Online for a Price Quote Request.
